| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | ZCFTB-16C-1（7232026） |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 10 working days |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Color: | Black | Capacity: | 16 Cores |
|---|---|---|---|
| Material: | PP+Glass Fiber | PLC Splitter Type: | Mini PLC Splitter |
| Dimension(L*W*D,MM): | 380*243*130 | Weight(KG): | 4.5 |
| Highlight: | fiber optical terminal box,fiber termination box |
||

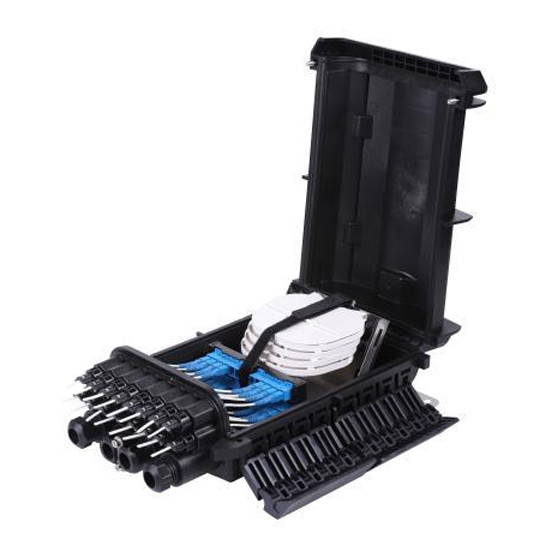

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
| Model No. | ZCFTB-16C-1(7232026) | |
||||||
| Color | Black | |||||||
| Capacity | 16 cores | |||||||
| Protection Level | IP68 | |||||||
| Material | PP+Glass Fiber | |||||||
| Flame retardant performance | Non-flame retardant | |||||||
| PLC splitter Type | Mini PLC Splitter | |||||||
| Dimension(L*W*D,MM) | 380*243*130 | |||||||
| Inner box size(MM) | 410*250*160 | |||||||
| Outer box size(MM) | 515*425*340 | |||||||
| Weight(KG) | 4.5 | |||||||
| Gross weight(KG) | 18.7 | |||||||
| PCS/Carton | 4 |
ZION COMMUNICATION Model No. ZCFTB-16C-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
Top View
Side View
Front View
· Plastic bag size: 380*243*130mm
· Inner box with single corrugated size: 410*250*160mm
· Carton with double corrugated size: 515*425*340mm(4PCS/Box)
· Weight per carton:18.7KG
· Avoid raining, sun exposuring and squeezing during transportation
· Products should be stored in the warehouse avoiding moisture, sun, fire.
The storage temperature should be from 25℃～+40℃
Note: Special parts that are easily damaged during transportation should be protected carefully.
