| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | ZCFTB-08N-2（7232020） |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 10 working days |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Color: | Black | Capacity: | 8 Core |
|---|---|---|---|
| Material: | PP+glassfiber | PLC Splitter Type: | Module Box PLC Splitter |
| Dimension(L*W*D,MM): | 290*185*108 | Weight(KG): | 1.7 |
| Highlight: | fiber optical terminal box,termination box for fiber optic cable |
||
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
| Model No. | ZCFTB-08N-2(7232020) | |
||||||
| Color | Black | |||||||
| Capacity | 8 core | |||||||
| Protection Level | IP55 | |||||||
| Material | PP+glassfiber | |||||||
| Flame retardant performance | Non-flame retardant | |||||||
| PLC splitter Type | Module Box PLC splitter | |||||||
| Dimension(L*W*D,MM) | 290*185*108 | |||||||
| Inner box size(MM) | 305*205*115 | |||||||
| Outer box size(MM) | 620*310*420 | |||||||
| Weight(KG) | 1.7 | |||||||
| Gross weight(KG) | 18 | |||||||
| PCS/Carton | 10 |

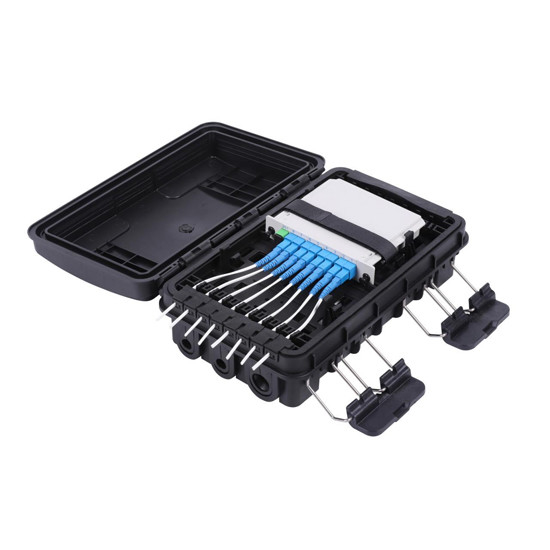

ZION COMMUNICATION Model No. ZCFTB-08N-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.
· Plastic bag size: 290*185*108mm
· Inner box with single corrugated size: 305*205*115mm
· Carton with double corrugated size: 620*310*420mm(10PCS/Box)
· Weight per carton:18KG
· Avoid raining, sun exposuring and squeezing during transportation
· Products should be stored in the warehouse avoiding moisture, sun, fire.
The storage temperature should be from 25℃～+40℃
Note: Special parts that are easily damaged during transportation should be protected carefully.
