| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | ZCSC-D048-02(7231203) |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 10 working days |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Color: | Black | Capacity: | 48 Cores |
|---|---|---|---|
| Material: | PP、PC，PC+ABS | Inlet/outlet: | 1+3 |
| Dimension(MM): | 305*Ф118 | ||
| Highlight: | Heat Shrink Seal Splice Closure,7231203 Splice Closure,48 Cores Splice Closure |
||
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
| Model No. | ZCSC-D048-02(7231203) | |
||||||
| Color | Black | |||||||
| Capacity | 48 cores | |||||||
| Protection Level | IP68 | |||||||
| Material | PP,PC,PC+ABS | |||||||
| Sealing Method For Inlets | Heat-shrink seal | |||||||
| Inlet/outlet | 1+3 | |||||||
| Inlet cable Dia | Ф8-Ф13 | |||||||
| Outlet cable Dia | Ф8-Ф18 | |||||||
| Relative humidity | ≤95%(＋30℃) | |||||||
| Atmospheric pressure | 62～101kPa | |||||||
| Dimension(MM) | 305*Ф118 | |||||||
| Inner box size(MM) | 315*195*180 | |||||||
| Outer box size(MM) | 600*330*555 | |||||||
| Per weight(KG) | 1.2 | |||||||
| Gross weight(KG) | 12 | |||||||
| Pcs/Carton(PCS) | 9 |

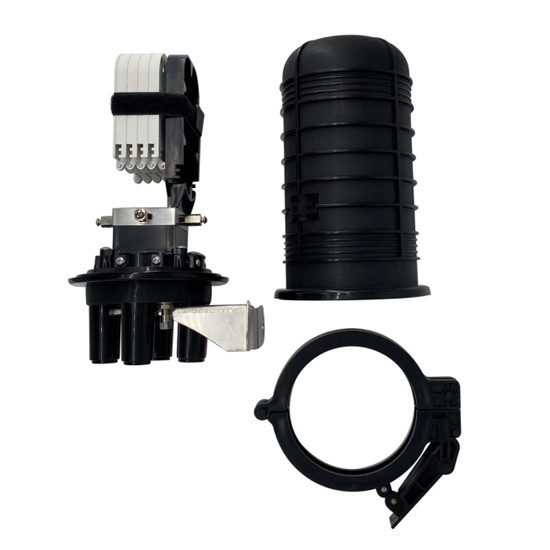

ZION COMMUNICATION Model No. ZCSC-D048-02 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Box bottom, box cover, cable holder, holder for strengthening cable part, splice tray, transparent cover for splice tray, magic cable tie, plate for installing splice tray, sealing part for box body, box hoop and other accessory.
Package
9 pcs/carton)
Transportation and storage
be from 25℃～+40℃
Note: Special parts that are easily damaged during transportation should be protected carefully.
Aerial mounting
1–Fiber optical splice closure 2–Hanger 3—Steel wire
Pole mounting
1– Fixed plate 2– Mounting plate 3—U-bolt 4—telephone pole
