| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication |
| Model Number: | ZCSC-H024-02（7231102） |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 10 working days |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Color: | Black | Capacity: | 24 Cores |
|---|---|---|---|
| Material: | PP、PC，PC+ABS | Inlet/outlet: | 2+2 |
| Dimension(L*W*D,MM): | 248*156*30 | ||
| Highlight: | Black Fiber Optic Horizontal Splice Closure,ZCSC-H024-02 |
||

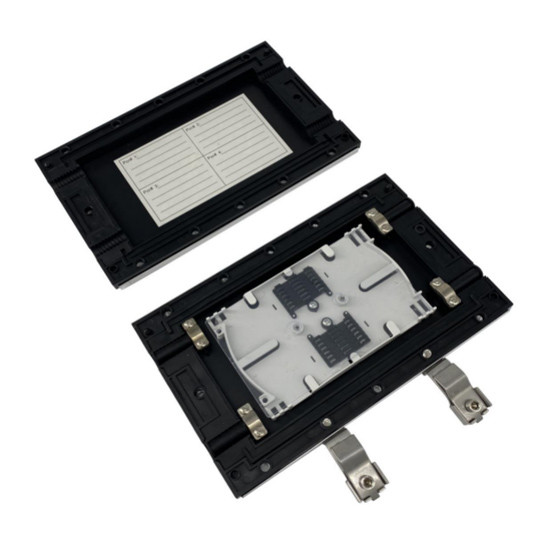

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
| Model No. | ZCSC-H024-02(7231102) | |
||||||
| Color | Black | |||||||
| Capacity | 24 cores | |||||||
| Protection Level | IP68 | |||||||
| Material | PP,PC,PC+ABS | |||||||
| Sealing Method For Inlets | Mechanical seal | |||||||
| Inlet/outlet | 2+2 | |||||||
| Inlet cable port | Ф15 | |||||||
| Outlet cable port | Ф15 | |||||||
| Dimension(L*W*D,MM) | 248*156*30 | |||||||
| Inner box size(MM | 310*165*38 | |||||||
| Outer box size(MM | 345*325*400 | |||||||
| Per weight(KG) | 1.05 | |||||||
| Gross weight(KG) | 22 | |||||||
| Pcs/Carton(PCS) | 20 |
ZION COMMUNICATION Model No. ZCSC-H024-02 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Note: Special parts that are easily damaged during transportation should be protected carefully.
