| Place of Origin: | China |
|---|---|
| Brand Name: | Hello Signal |
| Certification: | IEC 60825-1:2007 |
| Model Number: | QSFP28 |
| Minimum Order Quantity: | no limit |
| Packaging Details: | 10 PC/Plastic Bag |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Form Factor: | QSFP28 | Max Data Rate: | 100 Gbps |
|---|---|---|---|
| Wavelength: | 1310nm | Center Wavelength: | 1295,1325nm |
| Max Cable Distance: | 2KM | Connector Type: | MPO/MTP |
| Fiber Cable Type: | SMF | ||
| Highlight: | SMF 100G QSFP28 PSM4,1310nm SMF Fiber Optic Transceiver,100G QSFP28 PSM4 1310nm |
||

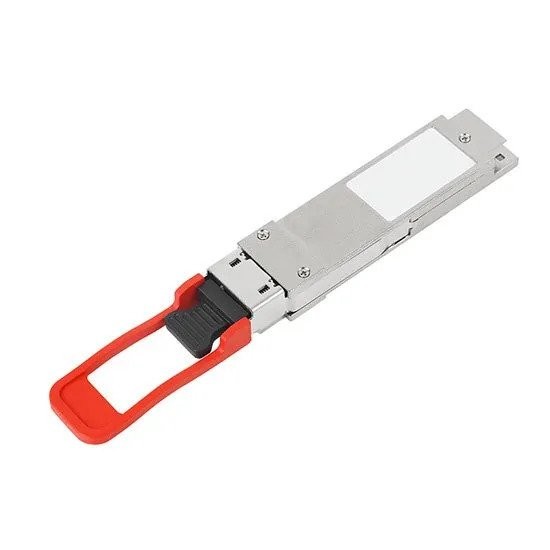

100G QSFP28 PSM4 1310nm 2KM MPO SMF Fiber Optic Transceiver
| Zion Code | Zion Description | |||||||
| 7211020 | 100G QSFP28 PSM4 1310nm 2KM MPO SMF Fiber Optic Transceiver | |||||||
The 100G QSFP28 PSM4 2KM is a 4x25G hot-pluggable optical transceiver module. It is designed for 2km optical communication applications over single mode fiber using a wavelength of 1310nm via MPO connectors.
It is compliant with QSFP28 MSA, IEEE 802.3bm 100GBASE-PSM4.
It is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as high-performance computing networks, enterprise core and distribution layer applications, data centers.
| Form Factor | QSFP28 | Max Data Rate | 100 Gbps | |||||
| Wavelength | 1310nm | Center Wavelength | 1295,1325nm | |||||
| Max Cable Distance | 2KM | Connector type | MPO | |||||
| Fiber cable Type | SMF | Vendor Name | Zion Communication | |||||
| Transimitter Type | FP | Receiver Type | PIN | |||||
| Transmit Power | Max Receiver sensitivity |
|||||||
| Overload Power | Extinction Ratio | |||||||
| DDM | Supported | Operating Temp. | 0°C to 70°C (32°F to 158°F) | |||||
| Zion Code | Zion Description | |||||||
| 7211010 | 100G QSFP28 SR4 850nm 100M MPO MMF Fiber Optic Transceiver | |||||||
| 7211020 | 100G QSFP28 PSM4 1310nm 2KM MPO SMF Fiber Optic Transceiver | |||||||
| 7211030 | 100G QSFP28 LR4 CWDM 2KM LC SMF Fiber Optic Transceiver | |||||||
| 7211050 | 100G QSFP28 LR4 LAN WDM 10KM LC SMF Fiber Optic Transceiver | |||||||
| 7211060 | 100G QSFP28 ER4 LAN WDM 30KM/40KM LC SMF Fiber Optic Transceiver | |||||||
| 7211070 | 100G QSFP28 ZR4 LAN WDM 80KM LC SMF Fiber Optic Transceiver | |||||||
