| Place of Origin: | China |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | CE, RoHS, VDE, UL, CUL, LPCB |
| Model Number: | HDMI cable |
| Minimum Order Quantity: | 20 KM |
| Packaging Details: | 100M, 200M, Roll, Carton |
| Delivery Time: | 25 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000KM / Month |
| Conductor A: | 4 Core Fiber Optic Cable | Conductor B: | Tinned Copper |
|---|---|---|---|
| No. Of Conductors: | 19+1 | Shielding: | Aluminum Foil |
| Drain Wire: | Tinned Copper | Jacket: | PVC (Polyvinyl Chloride) |
| Colour: | Black | ||
| Highlight: | HDMI 2.0 4K Fiber Optic Cable,PVC 4 Core Fiber Optic Cable |
||

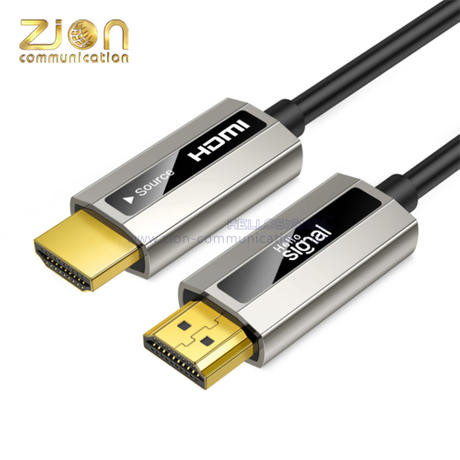

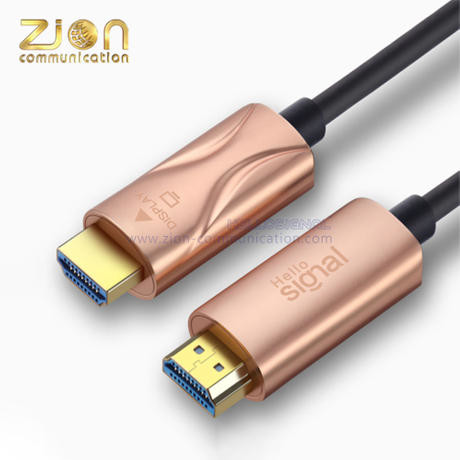

| HDMI 2.0 4K Fiber Optic Cable | |||||||
| Description | |||||||
|
Version 2.0 the most common current iteration of the HDMI spec, suit for simultaneously transmitting digital video and audio from a source, such as a computer or TV cable box, to a computer monitor, TV or projector. ZION Comm. offer HDMI 2.0 Fiber Optic Cable at lengths of 5 meter to 100 meters with resolutions up to 4K @60Hz. |
||||||
| Features: | |||||||
| Maximum bandwidth up to 18Gbps | |
||||||
| Resolutions up to 4K@60Hz | |||||||
| 4:4:4 chroma subsampling | |||||||
| High Dynamic Range (HDR) | |||||||
| Extended Mode: Supports 2 screens showing different picture | |||||||
| Sync Mode: Supports 2 screens showing the same picture | |||||||
| Game Mode: Supports PS3/4 immersive experience | |||||||
| Support for advanced audio features such as DTS-HD, Dolby TrueHD & Dolby ATMOS | |||||||
|
|
|||||||
| Broad Compatibility | |||||||
|
|||||||
| Specification: | |||||||
| General | |||||||
| Length | 5m - 100m | ||||||
| Resolution | 3840×2160 | ||||||
| Refresh Rate | 60Hz | ||||||
| HDMI Version | 2.0 | ||||||
| Bandwidth | 18 Gbps | ||||||
| Tone Quality | 32 Audio Channels | ||||||
| Display screen | 21:9 cinemascope | ||||||
| Cable details | |||||||
| Conductor A | 4 Core Fiber optic Cable | |
|||||
| Conductor B | Tinned Copper | ||||||
| No. of conductors | 19+1 | ||||||
| Shielding | Aluminum Foil | ||||||
| Aramid Fiber | |||||||
| Aluminum Foil | |||||||
| Drain Wire | Tinned Copper | ||||||
| Jacket Matterial | PVC (Polyvinyl chloride) | ||||||
| Jacket Color | Black | ||||||
| Connector details | |||||||
| Connector Plating | 24K Gold | ||||||
| CHIP | Silicon Line GmbH | ||||||
| Lasers | II-VI | ||||||
| Connector Type | HDMI (19pin) | ||||||
| Male to Male | |||||||
| ZC109 | ZC132 | ||||||
|
|
||||||
| Model List | |||||||
| Zion Code | Description | ||||||
| H20FOC050-ZC109 | HDMI 2.0 Fiber Optic CABLE 5M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC100-ZC109 | HDMI 2.0 Fiber Optic CABLE 10M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC150-ZC109 | HDMI 2.0 Fiber Optic CABLE 15M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC200-ZC109 | HDMI 2.0 Fiber Optic CABLE 20M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC250-ZC109 | HDMI 2.0 Fiber Optic CABLE 25M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC300-ZC109 | HDMI 2.0 Fiber Optic CABLE 30M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC500-ZC109 | HDMI 2.0 Fiber Optic CABLE 50M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC800-ZC109 | HDMI 2.0 Fiber Optic CABLE 80M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| H20FOC1000-ZC109 | HDMI 2.0 Fiber Optic CABLE 100M ZC109 Connector 4K/60Hz 18 Gbps | ||||||
| OEM/ODM service for you | |||||||
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. |
|||||||
| • Customized Logo on Plug & Boot | |||||||
| • Printing on Cable | |||||||
| • Label/PE bag/Carton design | |||||||
| • Different Color & Different Lengths Available | |||||||
| • Different Molding/Strain Relief | |||||||
| Packing | |||||||
|
|||||||
