| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Zion communication OR OEM |
| Certification: | ISO, CE, RoHS, UL |
| Model Number: | Optical System Equipment |
| Minimum Order Quantity: | 1,000 PCS |
| Packaging Details: | 1 PC/Plastic Bag, PCS/Carton |
| Delivery Time: | Normally 10 workingdays |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 30,000 PCS / Month |
| Model: | Fiber Optica Terminal Box | Bnad: | HELLOSIGNAL |
|---|---|---|---|
| Cord: | ZCFTB-144A-1 | Capacity: | 144 Cores |
| Material: | PP+Fiberglass | Dimension, W*H*D(mm): | 385*245*155 |
| Inlets/Outlets: | 4/4 | PLC Splitter: | N/A |
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
|

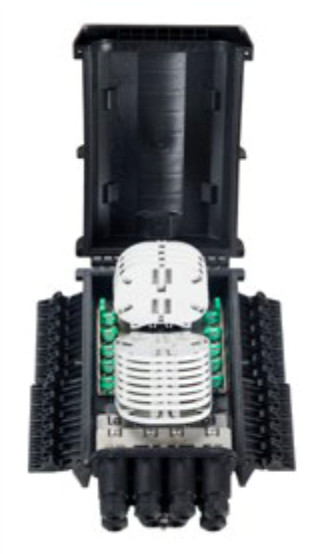

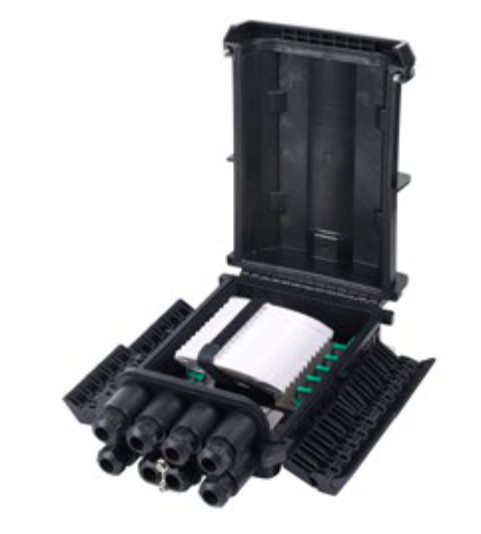

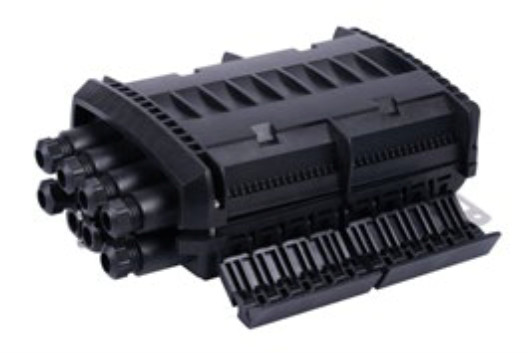

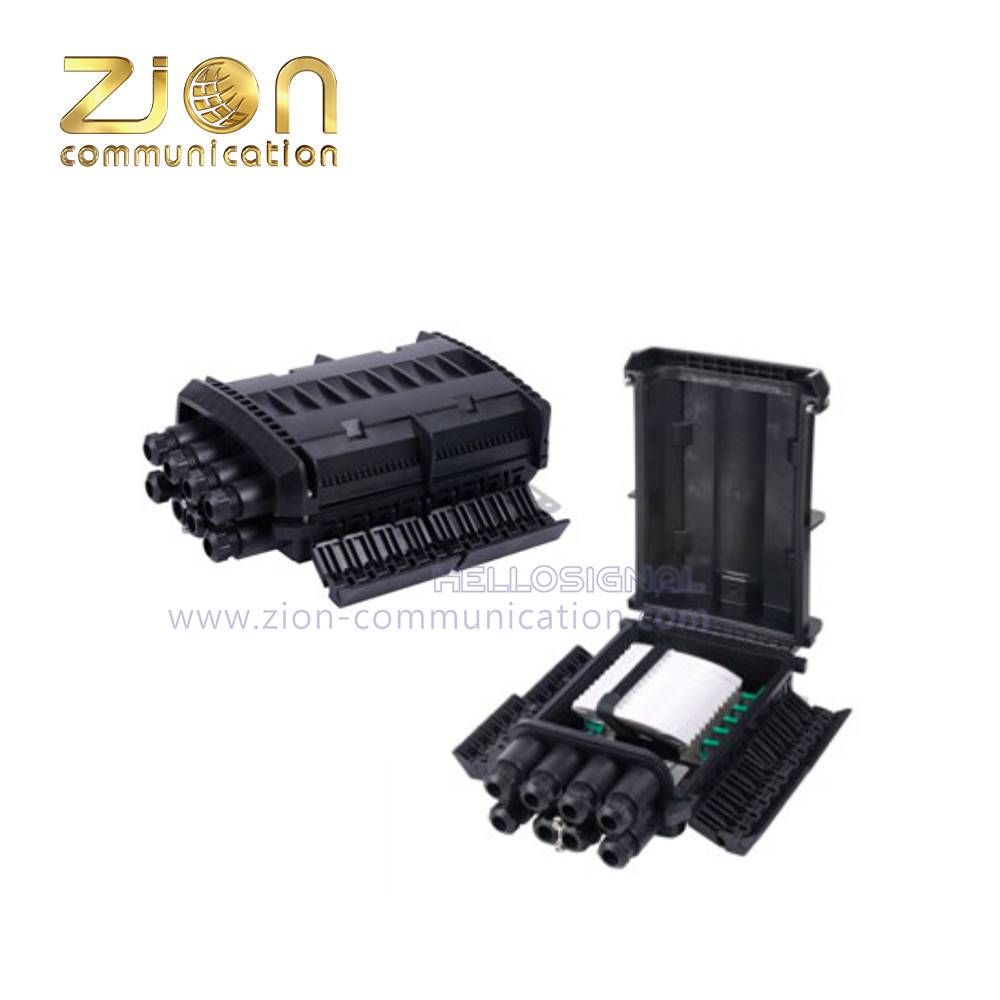

Fiber Terminal Box — ZCFTB-144A |
|||
|
ZCFTB-144A-1 |
|||
|
|||
|
Technical Specifcation |
|||
|
Capacity |
144 cores |
Accessible Cable Diameter |
Φ10-Φ18mm |
|
Material |
PP+Fiberglass |
Protection Level |
IP55 |
|
Dimension, W*H*D(mm) |
385*245*155 |
Input Cable Method |
Cutting |
|
Inlets/Outlets |
4/4 |
PLC Splitter |
N/A |
