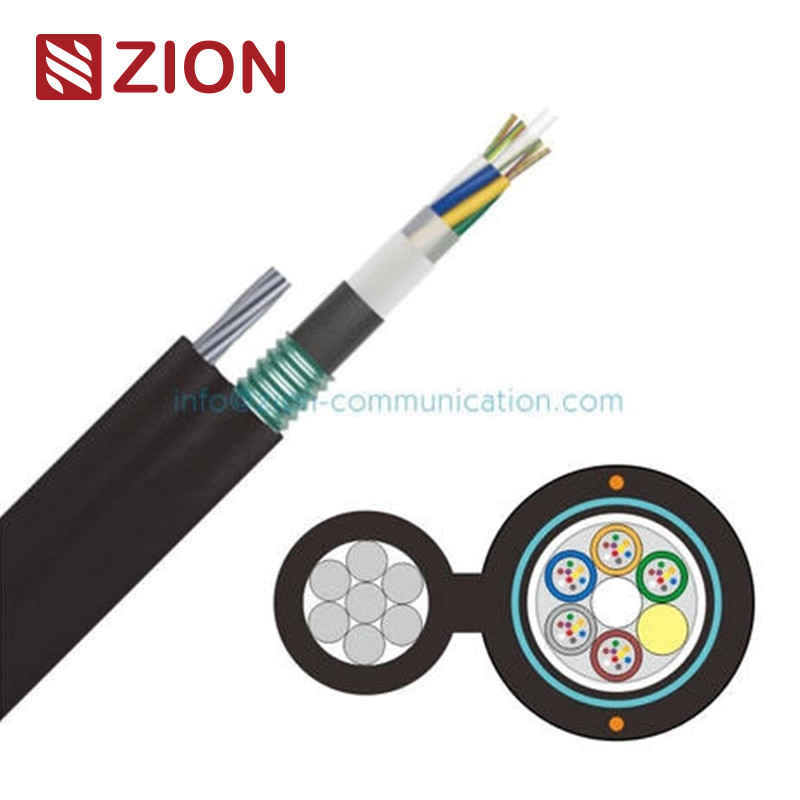

GYFC8Y53 FRP CSM Double Sheath Aerial Installation Figure-8 Self-Supporting Optical Cable
GYFC8Y53 FRP CSM Double Sheath Aerial Installation Optical Fiber Cable |
|||||||||||||||||||||||||
Application: | |||||||||||||||||||||||||
High tensile resistance High crush resistance | |||||||||||||||||||||||||
Semi-dry core design, easy for installation and splice | |||||||||||||||||||||||||
Self-supporting aerial installation | |||||||||||||||||||||||||
Characteristics: | |||||||||||||||||||||||||
G.652.D | G.655 | 50/125um | 62.5/125um | ||||||||||||||||||||||
Attenuation | @850nm | - | - | ≤3.0 dB/km | ≤3.0 dB/km | ||||||||||||||||||||
@1300nm | - | - | ≤1.0 dB/km | ≤1.0 dB/km | |||||||||||||||||||||
@1310nm | ≤0.36 dB/km | ≤0.40 dB/km | - | - | |||||||||||||||||||||
@1550nm | ≤0.22 dB/km | ≤0.23 dB/km | - | - | |||||||||||||||||||||
Bandwidth | @850nm | - | - | ≥500 MHz · km | ≥200 MHz · km | ||||||||||||||||||||
@1300nm | - | - | ≥1000 MHz · km | ≥600 MHz · km | |||||||||||||||||||||
Polarization mode dispersion |
lndividual fibre | ≤0.20 ps/√km | ≤0.20 ps/√km | - | - | ||||||||||||||||||||
Design link value (M=20,Q=0.01%) |
≤0.1 ps/√km | ≤0.1 ps/√km | - | - | |||||||||||||||||||||
Technical Data: | |||||||||||||||||||||||||
Item | Contents | Value | |||||||||||||||||||||||
Fiber Count | 24 | 48 | 72 | 96 | 144 | ||||||||||||||||||||
Loose Tube | No.of tubes*fibres pertube | 4*6 | 4*12 | 6*12 | 8*12 | 12*12 | |||||||||||||||||||
Outer diameter (mm) | 1.9 | 2.4 | 2.4 | 2.4 | 2.4 | ||||||||||||||||||||
Central Strength member | Material | FRP | |||||||||||||||||||||||
Diameter (mm) | 2.0 | 2.0 | 2.6 | 2.6 | 2.6 | ||||||||||||||||||||
Coated CSM diameter (mm) | - | - | - | 4.2 | 4.8 | ||||||||||||||||||||
Water Blocking material | Material | Water Blocking Tape & Yarn | |||||||||||||||||||||||
Inner Sheath | Thickness (mm) | Nominal:1.0 | |||||||||||||||||||||||
Armor | Material | Corugated steel tape | |||||||||||||||||||||||
Messenger Wire | Structure and diameter (mm) | 7*1.6 | |||||||||||||||||||||||
Outer Sheath | Thickness (mm) | Nominal:2.0 | |||||||||||||||||||||||
Cable diameter(mm)Approx. | 13.4/*24.4mm | 15.0/*26.0mm | 15.4/*26.4mm | 16.8/*27.8mm | 20.2/*31.2mm | ||||||||||||||||||||
Cable weight(kg/km)Approx. | 270 | 320 | 350 | 390 | 420 | ||||||||||||||||||||
Operating temperature range(℃) | -40~+70 | ||||||||||||||||||||||||
Tensile Strength Short/ Long Term(N) | 8000/2700 | ||||||||||||||||||||||||
Crush resistanoe short/long term (N/100mm) | 3000/900 | ||||||||||||||||||||||||
The colour arrangement of fibre and tube is specified in the colour identification table. | |||||||||||||||||||||||||
Other structure and fibre count are also available according to customer requirements. |
